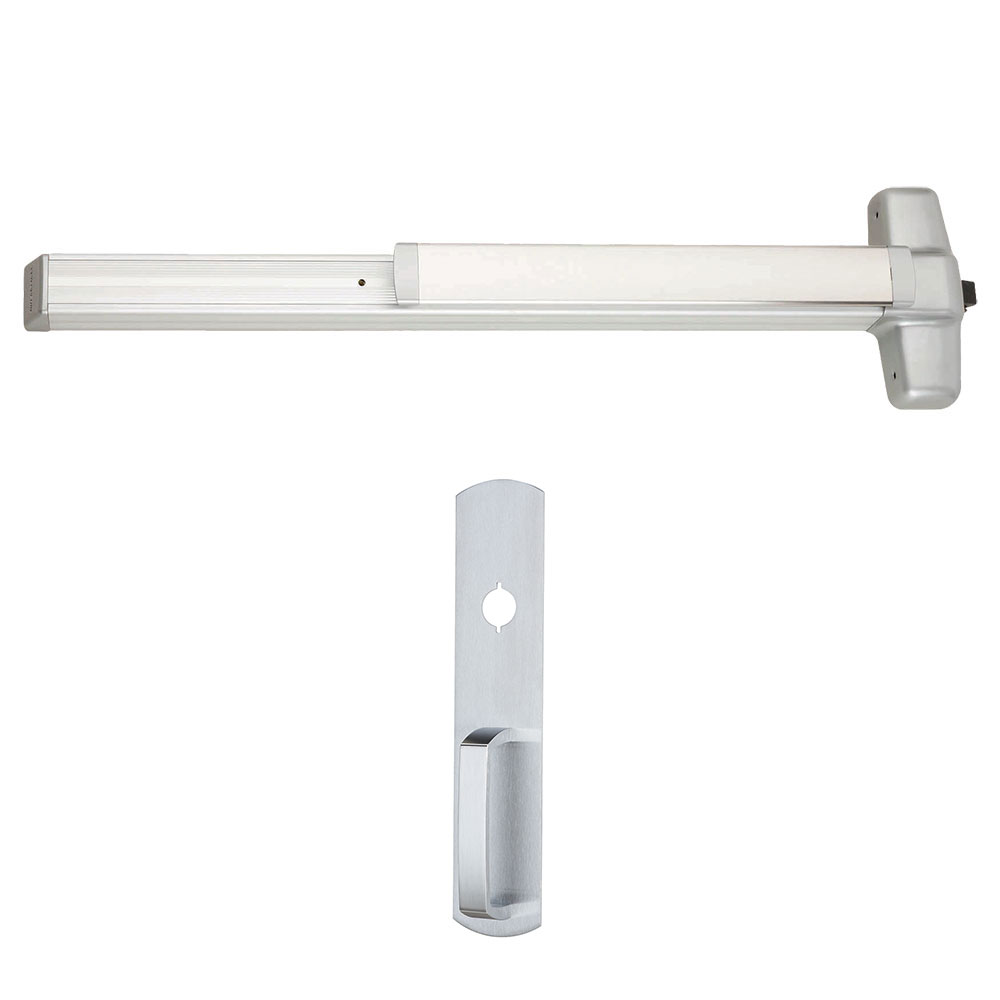

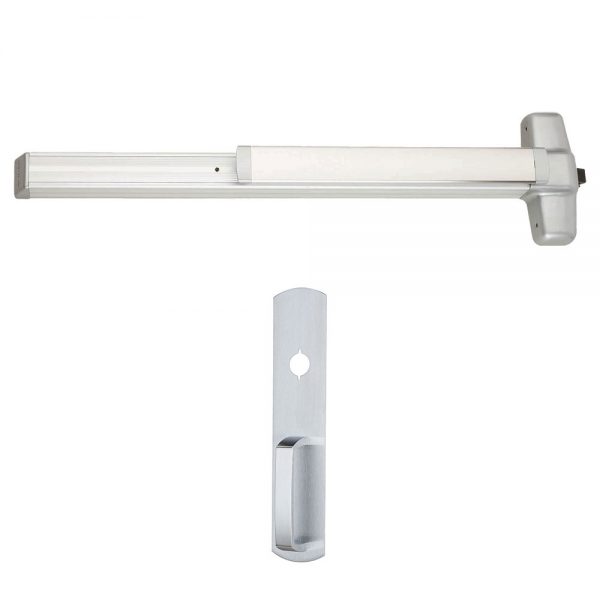

Von Duprin 99NL Rim Exit Device with Night Latch Pull

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI Function 03 (night latch – key retracts latchbolt)
  • Includes 990NL-R/V pull (cylinder sold separately)

Available Options:

  • Total

Product Overview

Von Duprin 99NL Grade 1 Rim Exit Device with Night Latch Pull, Wide Stile Pushpad, Field Reversible

High-performance, wide stile rim exit device with heavy-duty pull trim for high use and abuse applications

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.

  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

990NL Night Latch Lever Trim

  • ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key – Key is removable only when it’s locked)
  • Escutcheon plate size: 3″ x 14-13/16″ x 3/32″
  • Projection: 2″
  • Pull center to center: 5-1/2″
  • Rim cylinder must be ordered separately

Brand

Finishes

313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Trim

990NL (Night Latch – Key Retracts Latchbolt)
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Hand

Non-handed
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Fire Rating

99NL: Non-Fire-Rated – 99NL-F: UL Listed A or B label Fire-Rated (3 Hours)
Latchbolt

Deadlatching, 3/4" throw
Strike

299 roller strike standard, 299F strike with fire-rated device
Fasteners

Includes screws for metal and wood doors
Center Case

8" x 2-3/4" x 2-3/8"
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Door Applications

1-3/4″ Thick Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions Von_Duprin_990TP_TP-BE_NL_Trim_for_Rim_and_Vertical_Rod_Devices_Installation__Instructions
