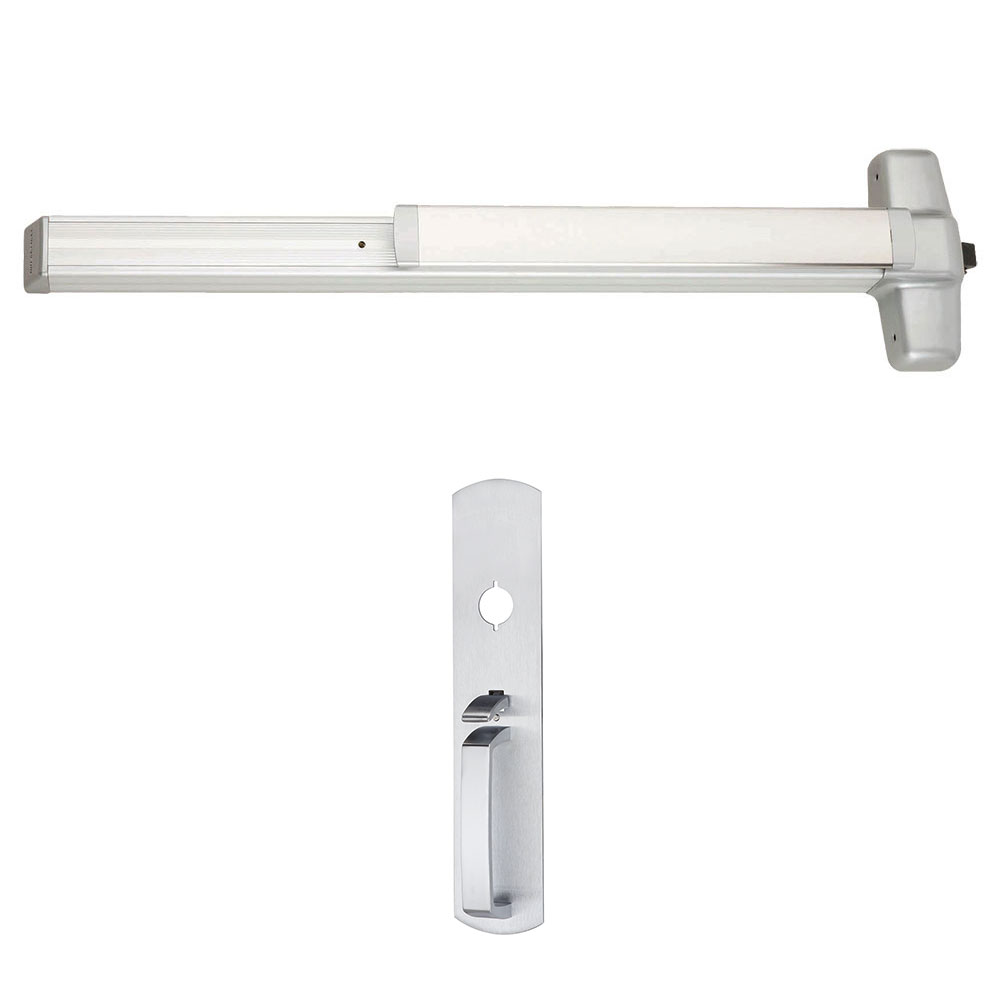

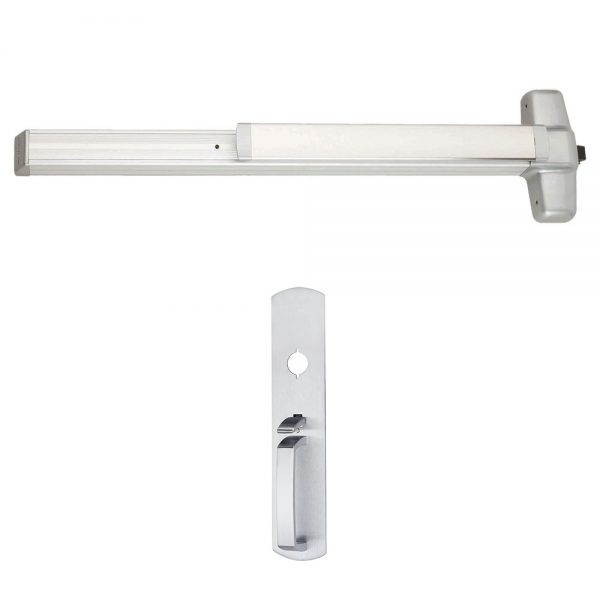

Von Duprin 99TP Rim Exit Device with Thumbpiece Pull

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI function 05 (key locks and unlocks thumbpiece)
  • Includes 990TP-R/V thumbpiece pull (cylinder sold separately)

Available Options:

  • Total

Product Overview

Von Duprin 99TP Grade 1 Rim Exit Device with Thumbpiece Pull, Wide Stile Pushpad, Field Reversible

High-performance, wide stile rim exit device with heavy-duty pull trim for high use and abuse applications

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.

  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

990TP Thumbpiece Pull Trim

  • ANSI Function: 05 (Key locks and unlocks thumbpiece)
  • Escutcheon plate size: 3″ x 14-13/16″ x 3/32″
  • Projection: 2″
  • Pull center to center: 5-1/2″
  • Rim cylinder must be ordered separately

Brand

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Trim

990TP (key locks and unlocks thumbpiece)
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Hand

Non-handed
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Fire Rating

99NL: Non-Fire-Rated – 99NL-F: UL Listed A or B label Fire-Rated (3 Hours)
Latchbolt

Deadlatching, 3/4" throw
Strike

299 roller strike standard, 299F strike with fire-rated device
Fasteners

Includes screws for metal and wood doors
Center Case

8" x 2-3/4" x 2-3/8"
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Door Applications

1-3/4″ Thick Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions Von_Duprin_990TP_TP-BE_NL_Trim_for_Rim_and_Vertical_Rod_Devices_Installation__Instructions
