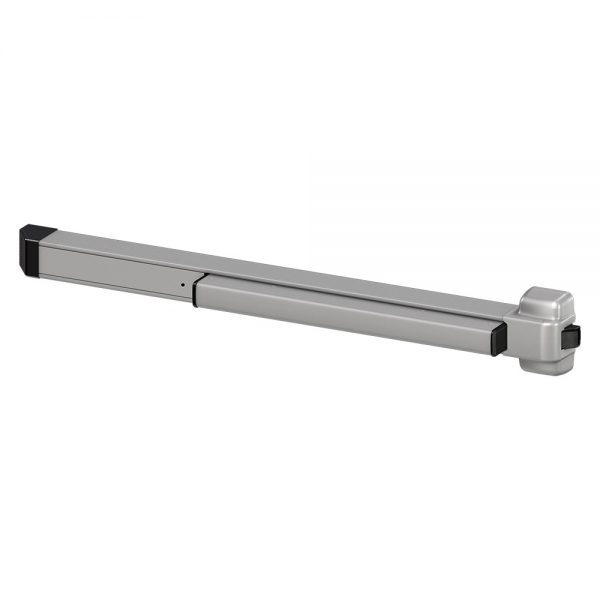

Von Duprin AX22EO Accessible Panic Rim Exit Device

Von Duprin AX22EO Grade-1 Accessible Rim Exit Device, Panic Rated, Exit Only

The AX device is a UL certified exit device designed to meet the progressive requirements of the California Building Code for accessible openings. This device meets the 5 lbs of operating force requirement called for in chapter 11B-309.4. The AX device also exceeds ANSI/BHMA requirements. All AX devices will be shipped with a new UL label clearly stating “Meets California Building Code (2013) Sec. 11B-309.4” and an “AX” identifier label on device center case.

The AX Series is subject to Von Duprin’s standard testing to ensure durability and functionality. The AX Series is the first UL-certified exit device to meet the new California Building Code requirements for accessible openings. This certification will help mitigate the risk of project delays, liability, and lost time and money in having to re-specify openings.

• Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
• AX = Certified to Meet California Code – 5 lb. Max. Operating Force
• ANSI A156.3, 2008 Grade-1
• UL listed for panic hardware
• Covers stock hollow metal doors with 161 cutout
• ANSI/BHMA A156.3 2010 ADA Standards for Accessible Design (Chapters 404.2.7 and 309.4)
• California Building Code (Chapter 11B-309.4)
• UL305 Panic Exit
