Accentra (Formerly Yale) 1810/1810F Surface Vertical Rod Exit Device

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Surface mounted, non-handed
  • Exit Only (outside trim sold separately)

Available Options:
Clear

Product Overview

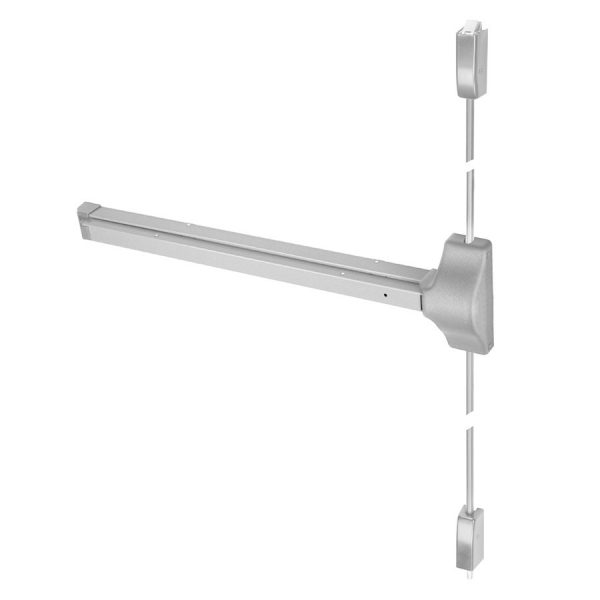

Accentra (formerly Yale) 1800 Series Grade 1 Flat Bar Exit Device, Surface Vertical Rod, 7ft Height

The 1810(F) is a surface vertical rod exit device to be used on metal, wood, or composite pairs of doors where two-point latching is desired.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Non-handed for easy installation
  • Designed for wide stile and flush doors
  • Positive action linkage on a deadlocking top Pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut

UL/cUL Listed:

  • FVSR/FVSR7 – Panic hardware
  • GXHX/GXHX7 – Fire exit hardware (F) (up to 4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)
Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated)
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Stile Type

Wide (Standard)
Door Width Range

30" to 36"
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fire Rating

1810: Non-Rated – 1810F: Fire-Rated up to 3 Hours
Handing

Non Handed – Completely Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Strike

Top: Roller type 791. Bottom: Flush mounted 790
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
